Brand:HEWEI
Description:

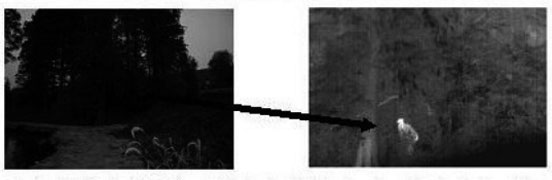

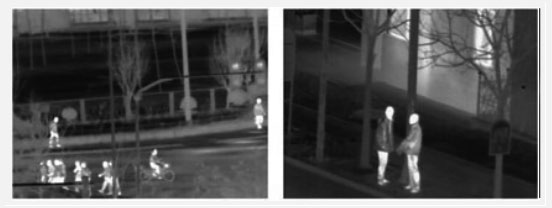

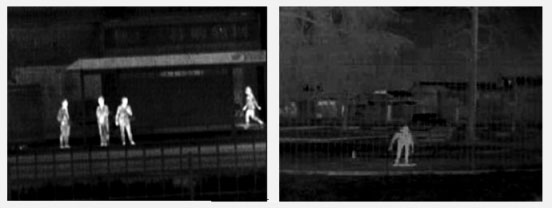

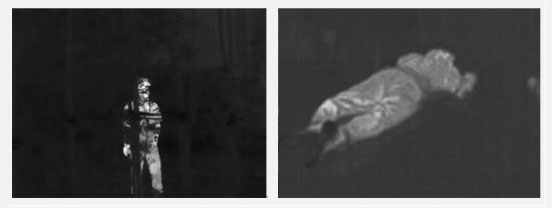

This device is rugged lightweight infrared binocular thermal imager system that uses the latest in low-power, compact, uncooled thermal technology. Unlike image intensification night-vision devices that only magnify existing light, thermal imaging cuts through darkness, through smoke, dust and most fogs.
It can not be defeated by artificial light or adverse visible conditions. Despite its advanced technology, HWTS-1 is surprisingly affordable for small or large-scale deployment.
The HWTS-1 was designed for the following applications:
·Military operations
·Border security
·Commercial and military perimeter security
·Man-portable or multifunction surveillance and targeting systems.
Specifications

Type Microbolometer,  uncooled
Spectral Range 8~14μm
Detector Format 384×288
Pixel Size(Pitch) 25μm
Frame Rate 50Hz
NETD Less than 60mk
Continuous Operation Endurance Large than 3 Hours
Digital Zoom ×2
Contrast/Brightness Adjustment Available (Manual or Auto)
Optical Spec
Optical Lens 50mm
F Number 1.0 to 1.4
FO V Single FOV
Focus Manual
Field Of View Single FOV  13.9°(H)×10.5°(V)
Image Output
Video Output Type Standard PAL or NTSC
Memory Card CF card for optional model
Display Spec
Type of Viewfinder 640×480 binocular LCD display
Color Monochrome
Power Consumption
Power Supply 7.2V 11Wh
Power Dissipation Less than 4W/
Battery Type Lithium ion
External Adapter 9V to 12VDC adapter
Operating Hours Less than 4 hours
Environment Operating Temperature -20°C ~+55°C
Storage Temperature -20°C ~+70°C
Water Immersion IP65
Mechnical
Weight less than 1.1kg
Dimension 200(W)×185(L)×81(H)mm
